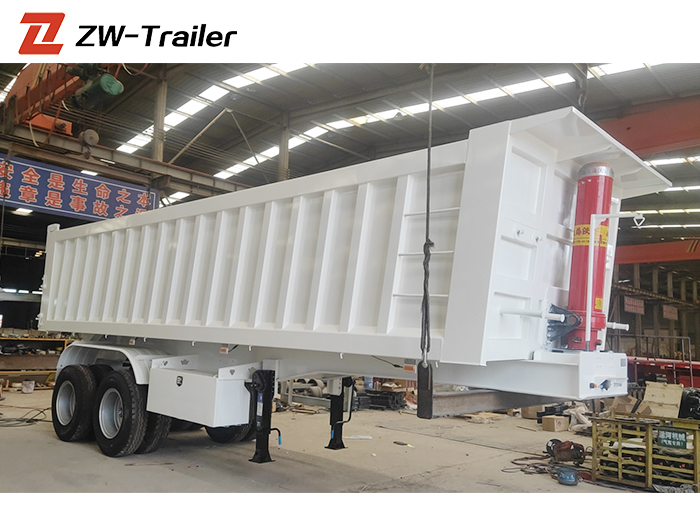

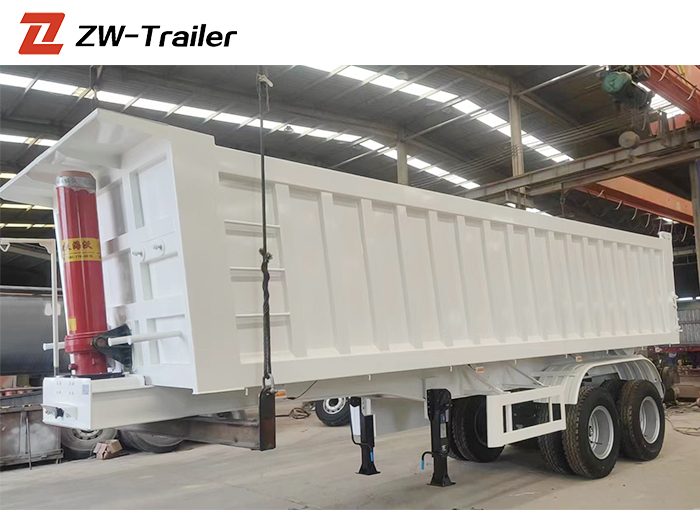

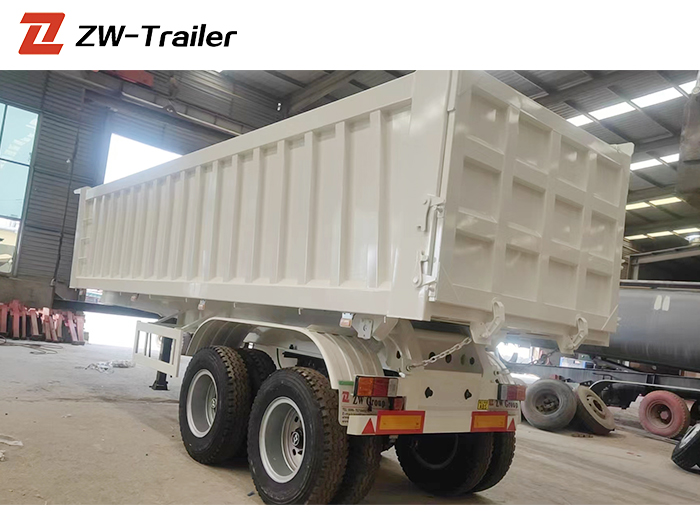

2 Axle 40 Ton Tipper Semi Trailer

ZW Group 2 Axle 40-Ton Tipper Semi-Trailer: Built for Performance, Engineered for Profit. which the ideal solution for businesses demanding superior performance in the transportation of bulk materials.

Enhanced Durability & Longevity: Constructed from high-strength steel and utilizing advanced welding techniques, the ZW Group 2 axle tipper trailer is built to withstand the harshest working conditions.

Efficient & Safe Tipping Mechanism: Featuring a powerful and reliable hydraulic tipping system, our dump trailer allows for quick and controlled discharge of materials.

ZW Group offer various customization options to tailor the tipper semi-trailer to your specific operational requirements, including different body thicknesses, hydraulic cylinder types, and tire configurations.

Specification

Trailer Type: 2-Axle Tipper Semi-Trailer

Payload Capacity: 40 Tons

Tare Weight : 8,500 kg

Dimensions：9500mm * 2500mm *1600mm

Kingpin: 2" or 3.5" Jost

Body Material: High-strength steel,  Q235

Body Type: Square or U-shaped

Brakes: Dual-line air brake system with ABS

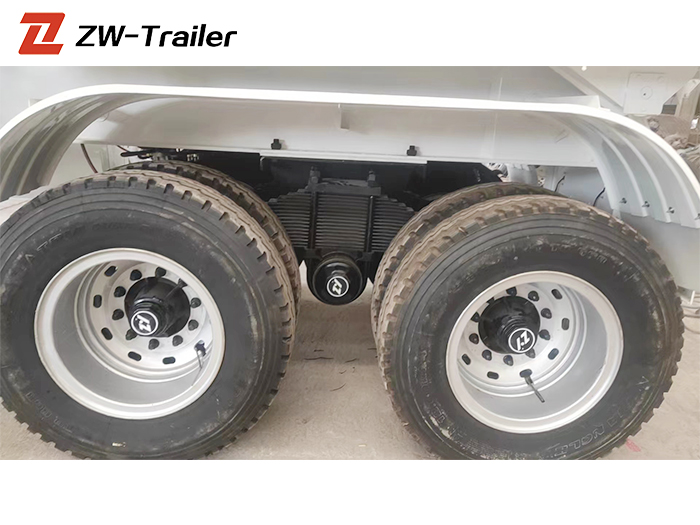

Suspension：Mechanical Suspension

Tires：12.00R20, 12R22.

Rims: Steel disc wheels 9.00x22.5
