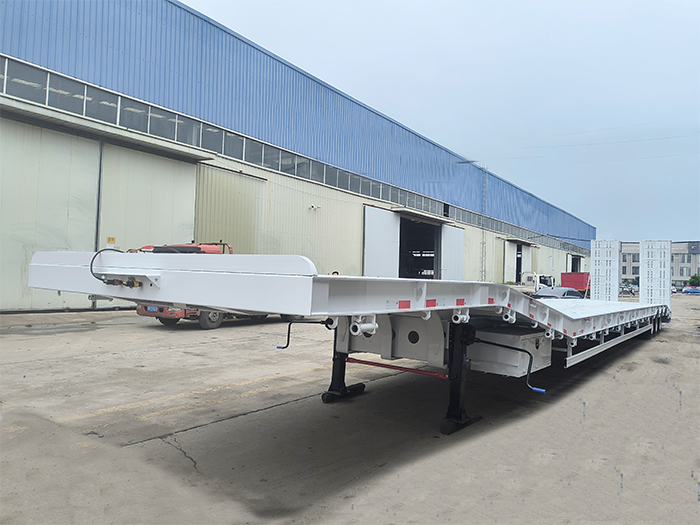

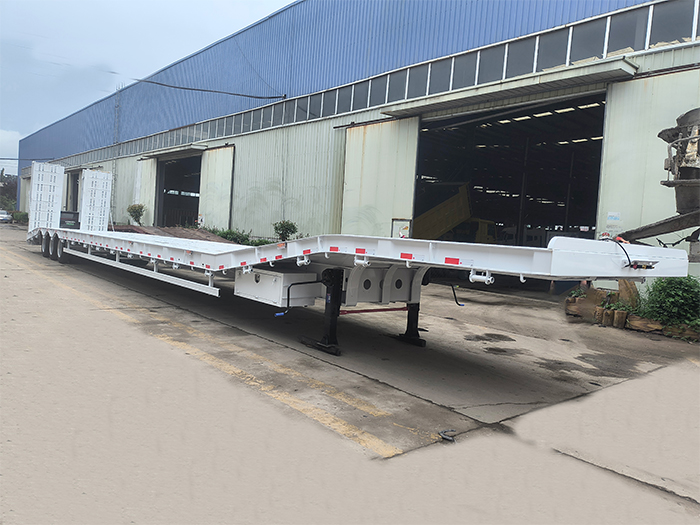

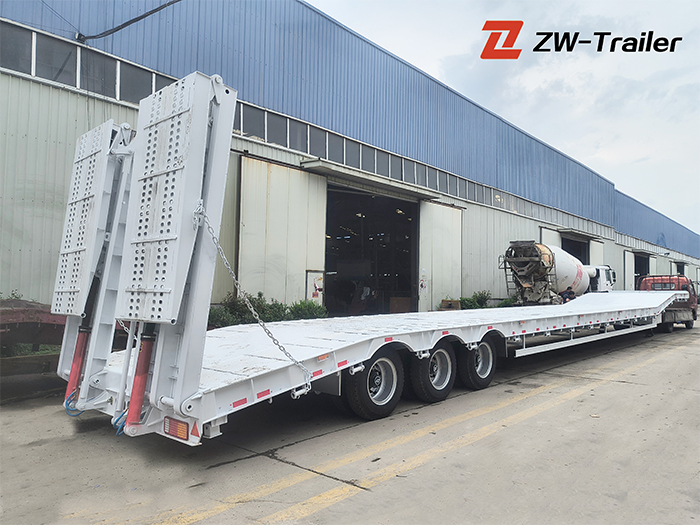

ZW Group 3 Axle Lowboy Semi Truck Trailer

ZW Group 3 Axle Lowboy Semi Trailer with Foldable Hydraulic Ladder is engineered to deliver exceptional performance, heavy-duty loading capabilities, and versatile transport solutions across industries. Whether you are moving construction machinery, oversized equipment, or industrial cargo, this lowboy trailer offers unmatched stability, convenience, and strength.

1. Heavy-Duty Load Capacity

Built with a high-tensile steel frame and reinforced main beams, this 3 axle lowboy trailer supports heavy machinery such as excavators, bulldozers, and cranes. With a load capacity ranging from 40 to 80 tons, it is ideal for oversized or over-height equipment transport.

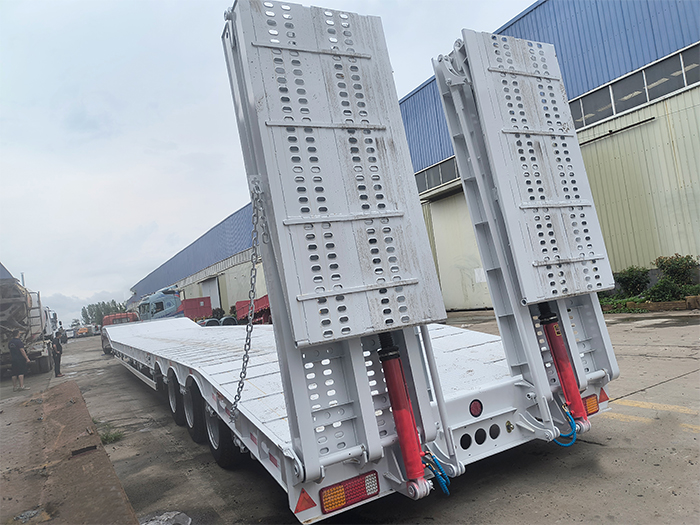

2. Foldable Hydraulic Ladder for Easy Loading

The hydraulic folding ladder system allows effortless loading and unloading of equipment. Controlled with precision hydraulics, the foldable ramp ensures safety and efficiency, reducing manual labor and improving turnaround time.

3. Enhanced Stability and Maneuverability

Equipped with three axles and high-quality suspension systems, the trailer ensures superior road performance, reduced tire wear, and enhanced balance, even on uneven terrain. The low center of gravity increases driving stability during transport.

4. Customizable Design

The trailer is available in custom lengths, widths, deck heights, and payload options. ZW Group offers tailored solutions to meet specific industry requirements, including removable gooseneck options, extra axles, and additional lashing rings or toolboxes.

5. Premium Components and Durability

The braking system (WABCO or equivalent), JOST landing gears, and wear-resistant floor plates ensure the trailer withstands heavy use and tough conditions. Anti-rust coatings and high-quality welding extend its service life.

Specifications

Brand-new 3 Axle Lowbed Semi Trailer

-Overall Dimension (Lx W x H)(mm)  : 22000*3000*1650

-Loading Weight( KG): 60,000

-Main Beam: the height of the beam is 500mm, upper plate is 16mm, down plate is 20mm, middle plate is 12mm.

-Axle Brand: 16TON Axle, China brand

-Axle Number: 3 axles

-Suspension system: mechanical suspension

-Platform plate: 4mm thickness Diamond plate

-Tire Type and quantity: 8.25-20R22.5 tires, 12 units+2 spare tires, in total 14 units,

-King Pin: 50mm, bolt-in type

-Landing Gear: 25T heavy duty, Jost Brand

-Spare Wheel Bracket: 2 pieces

-Ladder(ramp):Foldable Hydraulic ladder

Applications

• Heavy construction equipment transport

• Mining and agricultural machinery hauling

• Wind turbine and energy sector logistics

• Oversized and over-height cargo movement

Why Choose ZW Group?

• Industry-leading manufacturing with over 15 years of experience

• ISO and CE certifications ensuring top quality standards

• Global delivery and after-sales support

• OEM/ODM services for custom trailer needs

• Competitive pricing with uncompromising performance

(FAQ)

Q1: What is the maximum load capacity of the 3 axle lowboy trailer?
A1: Standard configurations support between 40 to 80 tons, but we can customize based on your transport needs.

Q2: Can the hydraulic ladder be operated manually if needed?
A2: Yes, while the primary system is hydraulic, a manual override can be installed for emergency use.

Q3: What is the typical delivery time?
A3: Standard models are ready within 20–25 working days. Custom orders may vary depending on complexity.

Q4: Do you provide OEM or branding services?
A4: Yes, ZW Group offers OEM/ODM customization, including logo branding and color choices.

Q5: How is the trailer shipped?
A5: We can arrange bulk shipment, container transport, or RORO (Roll-on/Roll-off) depending on destination and order size.
