3 Axle RGN Trailer for Sale
- zw trailer
- Shandong, China (Mainland)
- 20-30days
- 300 sets/month
ZW Group 3-Axle Removable Gooseneck Lowbed Semi Trailer is engineered for heavy, oversized transport requiring ramp-free loading, low deck height, durable structure, and flexible configuration.Combined with customizability, reliable after-sales, and global shipping readiness.

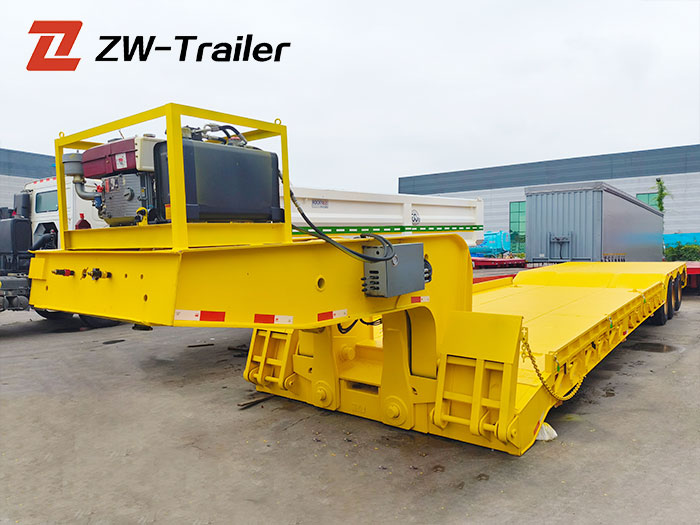

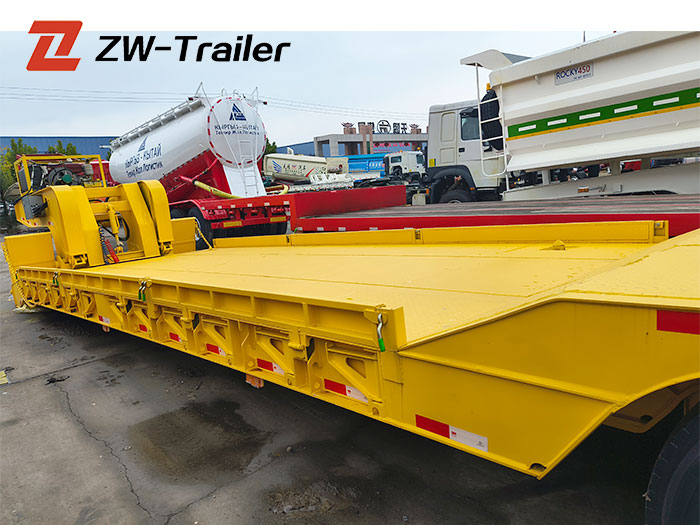

ZW Group 3 Axle RGN Trailer for Sale
Heavy-Duty 3 Axle Detachable Gooseneck Lowboy Designed for Oversized Transport, Front-Loading Accessibility, and Reliable Long-Haul Performance.
Product Description
ZW Group 3-Axle Removable Gooseneck Lowbed Semi Trailer is a premium heavy-haul solution designed for demanding transport of oversized machinery, construction equipment, and industrial cargo.
As a 3 axle RGN trailer, it offers ramp-free front loading via a detachable gooseneck, ultra-low deck height, robust structural design, and versatile configuration options to meet diverse shipping requirements.
With its detachable neck design, the trailer becomes a drive-on ramp for self-powered equipment, eliminating the need for external ramps or cranes.
The low deck height and rigid chassis support high loads while complying with many regional road and bridge limits.
Built with high-strength structural steel, advanced welding, anti-corrosion coating, and quality components (axles, suspension, tires, hydraulics), this trailer is engineered for long-term durability, stable performance, and ease of maintenance.
Whether you're operating in mining, construction, energy, or heavy equipment logistics, this 3-axle RGN lowbed semi trailer from ZW Group delivers efficient, safe, and cost-effective transport.
Key Product Features & Advantages

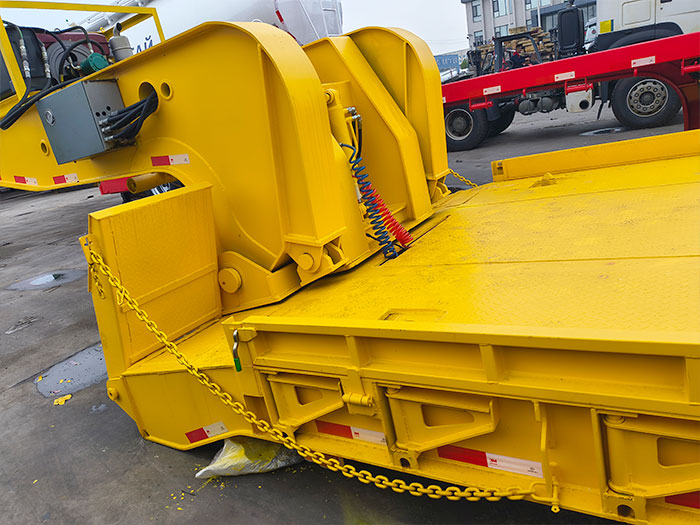

Gooseneck & Detachable Mechanism
Detachable gooseneck (RGN) — The front neck can be removed hydraulically or mechanically, letting the deck drop to ground level for direct equipment drive-up.
Hydraulic neck option — Seamless and efficient detachment/attachment using tractor wet-kit or hydraulic pump; quick locking pins, safety locks, and secure pins to ensure stable connection.
Mechanical neck option — Simpler structure with manual locking (pins) for customers preferring low maintenance or remote settings.
Low neck / ultra-low cargo table — The gooseneck design ensures the center-of-gravity is very low, thus enhancing stability and enabling transport of tall loads.
Structural & Coating Advantages
High-strength steel frame and I-beam construction — Main beam, side rails, cross members, and necks use high-grade, high-yield structural steel to resist bending and fatigue.
Anti-corrosion surface treatment & paint / coating — Multi-stage surface preparation (sandblasting, phosphating, primer, intermediate coat, topcoat) or optional powder-coat finish.

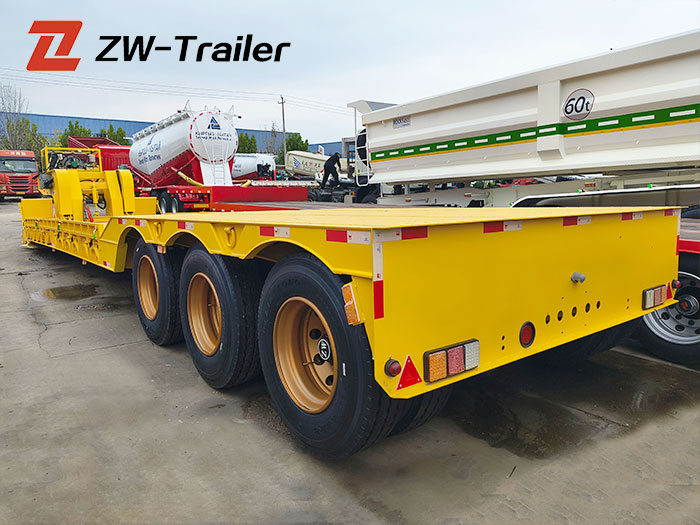

Axles, Wheels & Tires
High-capacity axles — 3 axles rated typically 25,000 lb (or higher, depending on spec) each, often with third-axle lift function.
Lift axle (optional) — The third axle can be lifted when under light load to reduce tire wear and improve maneuverability.
Wheel & rim spec — Standard steel disc rims 8.25″ × 22.5, hub-piloted, with 10-bolt pattern.
Tires — Twelve high-quality radial tires (e.g. 275/70R22.5 or other heavy-duty radial spec) to balance load, wear, and stability.
Braking system — Full air brakes (16.5″ × 7.0″ or equivalent) on all axles, auto slack adjusters, spring parking brake on one axis, and ABS (2S1M or more) configuration for safety in braking.
Configuration & Technical Parameters
Trailer Model | 3 Axles Detachable Gooseneck Lowbed Semi Trailer |
Dimension(Lx W x H)（mm） | 13000 x 3000 x 1250 |
Curb Weight(KG) | 9，800 |
Loading Weight( KG) | 60，000 |
Axle Brand | 13 Ton ZW Brand Axle |
Axle Number | 3 |
Suspension system | Mechanical suspension |
Steel Spring | 10/10/10 leaf spring |
Platform plate | 4 mm Diamond Plate |
Tire Type and quantity | 12R22.5 12 units Chinese brand |
Traction Pin | 2 inch or 3.5 inch bolted type (50mm or 90mm) |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 unit Standard |
Landing Gear | N/A |

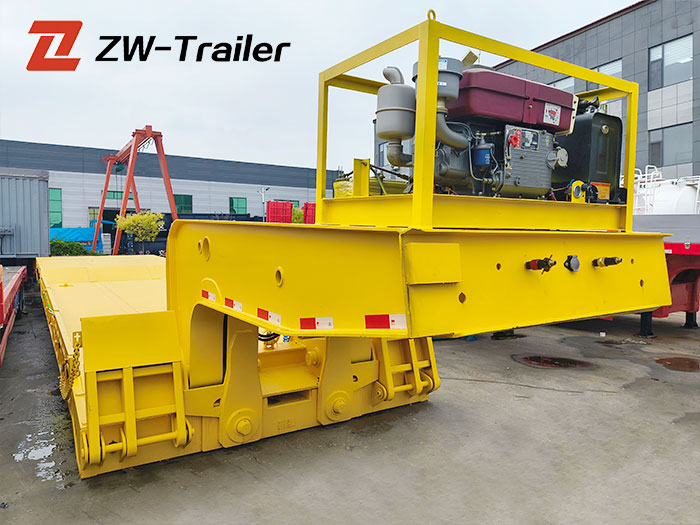

Power Station | With power station on gooseneck 22HP |
Brake system | Dual Line braking system |
Brake air chamber | 6 big air chambers |
Electrical system | 24V,7 Pole plug |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Painting | Color by customer’s requirement (same to photo) |

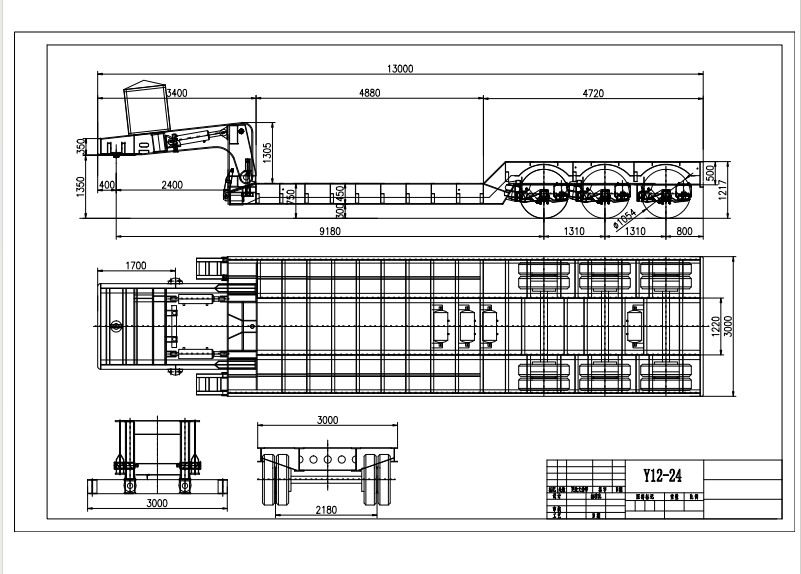

Drawings
CAD / 2D & 3D drawings — Frame layout, gooseneck assembly, cross sections, bill-of-materials.
Frequently Asked Questions (FAQ)
Q1: What is the maximum payload / load capacity of a 3-axle RGN lowbed trailer?
A1: It depends on the design, axle ratings, and regulatory limits. A well-engineered 3-axle RGN trailer can carry 50 to 80+ tons
Q2: Why choose a removable gooseneck (RGN) design?
A2: The RGN design allows the front of the trailer to drop to ground level (after detaching the gooseneck), enabling self-powered equipment to drive directly onto the deck without external ramps. This saves time, cost, and enhances safety.
Q3: Hydraulic detachable vs mechanical detachable gooseneck — which is better?
Hydraulic detachable: Faster, easier, more convenient for frequent operations; but requires hydraulic system, maintenance of seals, and a hydraulic source (wet-line).
Mechanical detachable: Simpler structure, less maintenance, lower cost, but slower and more manual labor needed.
Choice depends on your operational frequency, maintenance capacity, and budget. ZW Group supports both options
