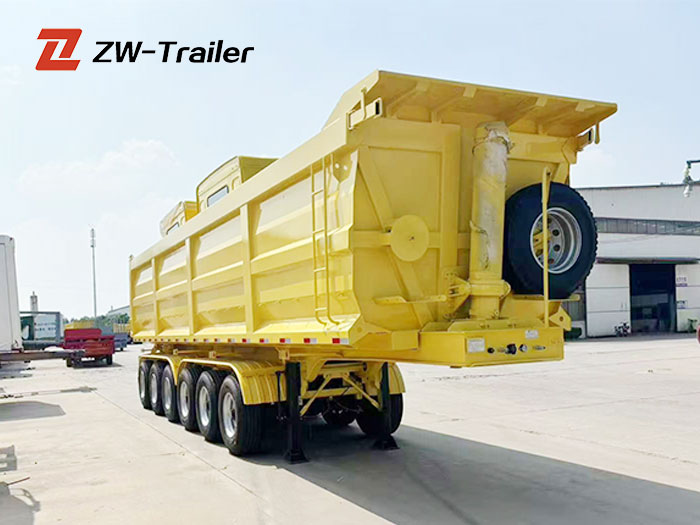

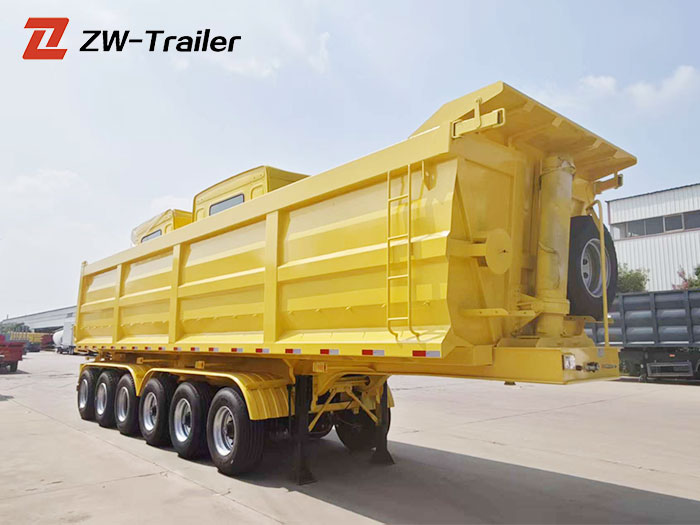

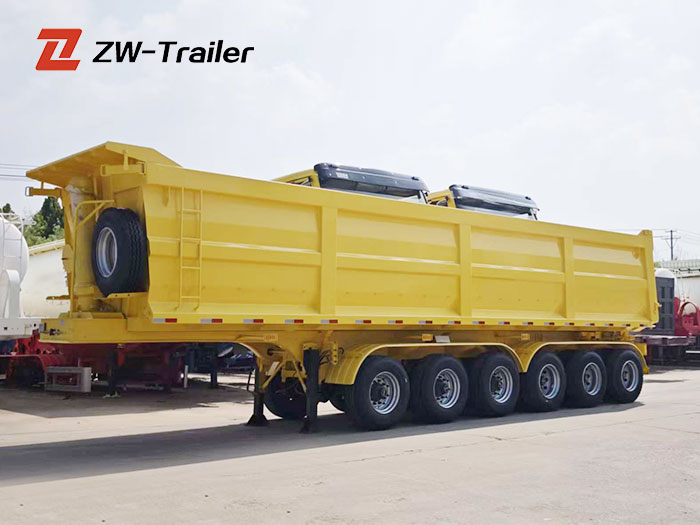

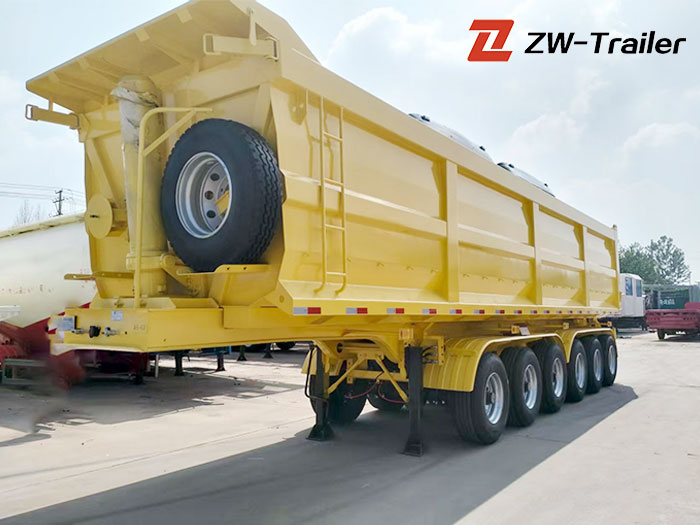

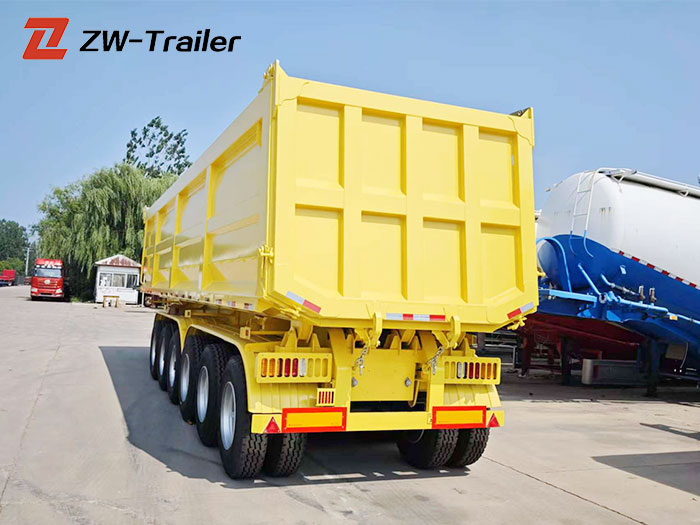

Heavy‑duty 6 axle Dump Semi Trailer for

Product Description

ZW Group 6‑axle sand transport dump truck trailer configuration ensures optimal weight distribution, minimizing road wear and enhancing handling even on uneven terrain.

The cargo box is constructed from thick high‑strength carbon steel (usually 10–12 mm side walls, 14–16 mm bottom plate) to resist abrasion from sand, gravel, and coal.

A robust HYVA hydraulic cylinder powers the rear dump mechanism, enabling steep dump angles for clean unloading and maximized productivity

Key Product Features & Advantages

• Painting & Corrosion Protection

Shot‑blasted steel chassis to remove rust and scale before painting

One coat anticorrosive primer, followed by two coats of finish-grade urethane paint, in any customer‑specified color.

• Axles & Brake System

FUWA or BPW branded multi‑leaf axles (13 T each), chosen for reliability in heavy‑load sand & coal hauling scenarios

Dual‑line pneumatic braking, multiple air chambers per axle, optional ABS for safety on long descents or high-speed routes

• Tires & Rims

Heavy‑duty 12R22.5 or 13R22.5 tires, brands like Double Coin, Triangle—ensuring load-bearing capacity and wear resistance

Strong steel rims sized appropriately (9.00‑22.5, etc.) matched to wheel configuration

• Suspension System

10‑leaf spring mechanical suspension standard for rugged terrain

Optional air suspension for smoother ride and adjustable deck height depending on payload

• Hydraulic Tipping Mechanism

High‑quality HYVA hydraulic cylinder ensures smooth, reliable lifting and unloading

Designed for steep dump angles to facilitate rapid, complete discharge of sand, coal, gravel, or ore

• Chassis & Structural Detail

Heavy I‑beam main frame with beam height around 500 mm, upper plate 14‑16 mm, lower plate 16‑18 mm, middle plate ~8 mm

Reinforced cross‑members and U‑type structure for rigidity and high torsional strength, resisting deformation under full load

• Additional Details

JOST brand landing gear (28 T two‑speed), standard kingpin options (2″ or 3.5″ JOST)

Spare wheel bracket, standard tool box, LED lighting system with 7‑way 24 V harness, sturdy feature set for global shipping and compliance

Production & Manufacturing Process

ZW Group employs advanced welding and stamping production lines, automated welding robots, and quality control systems.  Each trailer undergoes plasma cutting, robotic welding, hydraulic system assembly, painting, and final inspection.

Production steps:

• Raw material sourcing (high‑strength carbon steel)

• CNC plasma cutting → automated welding → chassis assembly

• Installation of axles, suspension, kingpin, landing gear

• Hydraulic system mounting and test

• Shot blasting → primer → painting → curing

• Final assembly: lighting, tool box, air lines, spare tire bracket, inspection & load testing

The factory follows ISO9001, CE, DOT, CCC certification standards, producing several hundred dump semi‑trailers monthly for export to South Asia, Africa, the Middle East, and Latin America

Load Testing & Quality Assurance

Every trailer undergoes static and dynamic load testing to confirm payload capacity (40 t to 60 t depending on specs).

Hydraulic cylinders are fully tested under pressure.   Brake and suspension systems are verified under full load.

Non‑destructive testing (NDT) checks welding seams throughout.   Only after passing final quality checks is the trailer approved for dispatch.

Packaging & Shipping Details

• Packaging: trailers shipped nude (no enclosure), wax‑polished steel body to protect against saltwater corrosion

• Securing: tied with steel wire braces or blocks to avoid shifting during transport

• Shipping options: Ro‑Ro vessel, flat‑rack, bulk cargo or container (depending on order volume)

• Timely delivery within 20–30 days turnaround for production and delivery

Specification

With robust steel construction, reliable FUWA axles, HYVA hydraulic lift, customizable suspension, and thorough quality control, it's optimized for demanding hauling environments worldwide.

The complete package—from production and testing to packaging and documentation—ensures clients receive a high-performance, durable, and export-ready solution.
